OFCH-HB-LTH-001

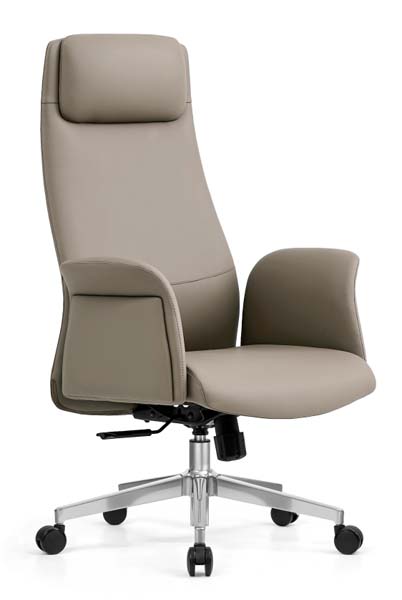

Code：6U0DJXV1High-Back Upholstered Swivel Executive Office Chair
View specifications, dimensions, materials and sourcing details for High-Back Upholstered Swivel Executive Office Chair.。Upholstered faux leather/leather, polished aluminum alloy base, steel internal frame, polyurethane casters（High-back,design,5-star,swivel,base,padded,integrated,armrests,headrest,support）
Request supplier quotes

High-Back Upholstered Swivel Executive Office Chair Key Specifications 2026-07-29 16:11

Popularity: 7
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No corrections yet. Use the flag at the end of a row to report an issue.

OFCH-HB-LTH-001

1 active supplier(s) >>
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions680 x 720 x 1200mm
Seat width520 mm
Seat depth500 mm
Seat height range500mm
Backrest total height760 mm
Headrest dimensions300 x 180 x 60 mm
Armrest height from seat220 mm
5-star base diameter680 mm
Caster diameter60 mm
Backrest lumbar zone width480 mm
Finished Seat Cushion Thickness90mm
Backrest Padding Thickness70mm
Lumbar Support Zone Height240mm
Clear Width Between Armrests540mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Net weight range22kg
Recommended user weight capacity150kg
Seat foam static load rating≥1000N
Backrest recline static load≥750N
Caster rolling durability≥40000 cycles
Seat front edge static load≥800N
Aluminum base static load rating≥1100 kg
Seat Foam Density / Rebound Reference45kg/m³ / 65%
Back Foam Density Reference38kg/m³
Upholstery Thickness / Abrasion Reference1.4mm / 50000 cycles
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Seat/back/headrest upholsterySmooth taupe faux leather or top-grain leather upholstery
Seat cushion core52kg/m³ high resilience polyurethane foam, 80 mm thick
Backrest core42kg/m³ shaped polyurethane foam, 55 mm thick
Headrest padding45 kg/m³ polyurethane foam, 60 mm thick
Armrest structurePolyurethane padded top with rigid PP inner support, upholstered to match seat
Internal support frame1.8 mm thick welded steel tube frame with anti-rust coating
5-star basePolished die-cast aluminum alloy, 3.5 mm wall thickness
Gas lift cylinderChrome plated Class 3 steel gas lift, 50 mm outer diameter, 80 mm stroke
Tilt mechanism2.5 mm thick steel multi-lock synchro-tilt chassis, black powder coated finish
Casters60 mm diameter black polyurethane dual-wheel casters with metal stem
Seam construction10 mm stitch pitch matching upholstery thread, reinforced stress point stitching
Seat Internal Support Board Thickness14mm bent plywood or equivalent support board
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Seat height adjustmentPneumatic adjustment via right-side lever, 80 mm stroke, locking at any height within range
Backrest recline functionSynchro-tilt recline up to 125 degrees, with multi-position lock and tension adjustment knob
360-degree swivelFull rotation around central gas lift axis, no rotational stop
Smooth mobilityFive dual-wheel casters for omnidirectional rolling on hard floors and low-pile carpet
Integrated head supportFixed position padded headrest aligned to support cervical spine during upright and reclined postures
Fixed padded armrestsCurved upholstered armrests positioned to support forearms at desk working height, no height/width adjustment visible
Weight-activated tilt tensionAdjustable tension dial under seat to match user weight, adapting recline resistance for 120kg users
Recline Angle / Lock Reference125° with 3 suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Packaging piece count1 carton (KD assembly, base and casters packed separately from chair body)
Reference carton dimensions800 x 680 x 580 mm
Reference gross weight26kg
Reference CBM per unit0.315 m³
Assembly time25minutes per unit
20ft GP container loading capacity90 units
40ft HQ container loading capacity220 units
Reference Package Count1 set / 2 cartons
Reference Assembly Time40minutes per set
Reference Packaged Gross Weight23kg/set
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Executive private officeHigh-back support and premium upholstered finish suitable for manager and executive workspaces requiring extended seating comfort
Conference meeting roomsNeutral taupe finish and swivel-recline function suitable for 2 hour seated meetings around conference tables
Home office premium setupsQuiet casters and ergonomic support suitable for dedicated home workspaces with executive aesthetic
Reception VIP seating areasPolished aluminum base and refined upholstery suitable for formal visitor seating in corporate reception zones
Recommended pairing surfaceStandard 760mm height executive desks, with matched taupe or walnut finish desk systems for coordinated workspace styling
Recommended Matching Desk Size2.4m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

EU EN Standards

European market access and chemical requirements

No standards data is available for this market.
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

No standards data is available for this market.
STANDARD S3

China GB Standards

Standards applicable to China-market projects

No standards data is available for this market.
Standard Tender Description
This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
