Automatic mm / inch conversion · Core engineering specifications
| Overall desk dimensions (workstation + integrated credenza) | 2800 x 1450 x 1100mm | |
|---|---|---|
| Main work surface height from floor | 750mm | |
| Worktop panel thickness | 25mm | |
| Per-person workstation work surface width | 1200mm | |
| Main work surface depth (front to knee cavity) | 600mm | |
| Rear storage credenza depth | 450mm | |
| Rear credenza total height | 620mm | |
| Seated knee clearance height under work surface | 650mm | |
| Knee clearance width for left (metal leg) work position | 800mm | |
| Central open CPU storage cavity dimensions | 400 x 500 x 400mm | |
| Cork privacy divider dimensions (per position) | 1100 x 350 x 20mm | |
| Edge banding thickness | 2mm | |
| Steel A-frame leg tube wall thickness | 1.5mm | |
| Cable grommet diameter (divider mounted) | 60mm | |
| Drawer front panel thickness | 18mm | |
| Finished Top Thickness | Approx. 30-50 mm | |
| Effective Knee Clearance | Approx. 620-680 mm high and 700-900 mm wide per main seat | |
| Leg / Support Section | Approx. 40-80 mm main section with 1.2-2.0 mm metal wall |
Net weight / load capacity / users / durability
| Total product net weight range | 135-165kg | |
|---|---|---|
| Distributed static load rating per work position | 120kg | |
| Pedestal drawer static load rating | 25kg per drawer | |
| Credenza cabinet shelf static load rating | 30kg per shelf | |
| Cable tray under-desk load rating | 10kg | |
| Recommended maximum user weight per position (for seated use) | 130kg | |
| Surface abrasion resistance (melamine finish) | 400 cycles (Taber CS-10 wheel, 1kg load) | |
| Drawer slide cycle rating | 50000 open/close cycles | |
| Cabinet door hinge cycle rating | 80000 open/close cycles | |
| Top Static Load Reference | Approx. 80-150 kg uniformly distributed | |
| Drawer Slide Load / Life | Approx. 25-45 kg/pair; 30,000-50,000 cycles | |
| Hinge Opening Life | Acceptance target 40,000-80,000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 3-5 years; hardware 2-3 years; finish 1-2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
| Main work surface | 25mm E1 grade particleboard substrate with light off-white matte melamine laminate finish, 2mm PVC edge banding | |
|---|---|---|
| Left support leg assembly | Black powder-coated 1.5mm wall thickness steel A-frame with horizontal cross brace for stability | |
| Central storage pedestal and credenza cabinet frames | 18mm E1 grade composite wood panel, two-tone dark charcoal frame + warm taupe door/drawer front finish, PVC edge banding | |
| Privacy dividers | 20mm thick natural cork tack surface with brown ABS/wood-grain frame, mounted via metal brackets to work surface center | |
| Drawer internals and cabinet shelves | 16mm E1 grade particleboard with matching melamine finish, full-extension cold-rolled steel drawer slides | |
| Cabinet door hinges | Cold-rolled steel concealed soft-close hinges with nickel plating | |
| Adjustable cabinet leveler feet | Nylon base with steel threaded stem, 10mm adjustment height for uneven floors | |
| Under-desk cable management | 0.8mm thick cold-rolled steel cable tray, powder-coated black, mounted under work surface rear edge | |
| Work surface connecting brackets | 2mm thick powder-coated steel brackets for joining modular desk sections at installation | |
| Primary Panel Thickness | Approx. 18-25 mm; load-bearing top may use 25-40 mm composite build-up | |
| Edge Band Thickness | Approx. 1.0-2.0 mm | |
| Metal Frame Wall Thickness | Approx. 1.2-2.0 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support | |
| Reference Finish / Color Count | Recommended 3-6 top finishes and 1-3 frame colors |
Adjustment / rotation / tilt / mobility / storage features

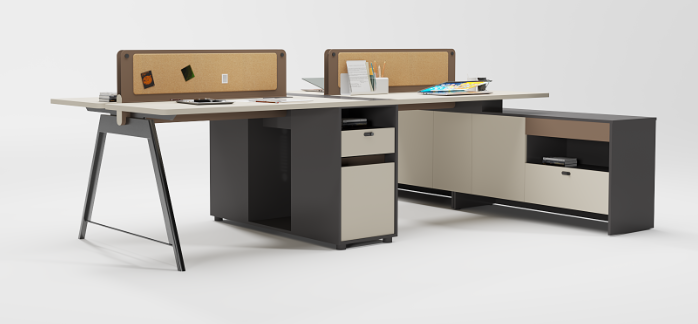

| Individual work zone separation | Two discrete 1200mm wide work positions separated by 350mm tall cork privacy dividers, with tackable surface for pinning notes and documents | |
|---|---|---|
| Mixed support configuration | Left work position supported by open steel A-frame leg for unobstructed leg room, central and right positions supported by full-height storage pedestals that integrate storage functionality | |
| Central pedestal storage layout | 1 upper shallow drawer for office supplies, 1 lower enclosed cabinet door for personal storage, plus open front cutout for mid-tower CPU placement directly under work surface | |
| Rear credenza storage layout | 3 full-height enclosed cabinet doors for bulk office supply storage, 1 open middle storage shelf for frequently accessed items, 1 lower right drawer for additional supplies, aligned along full rear length of workstations | |
| Cable management system | Divider-mounted 60mm cable grommets at each work position, paired with concealed under-desk steel cable tray to route power and data cables without visible clutter | |
| Adjustable floor leveling | Nylon threaded leveler feet on all cabinet bases to adjust for uneven office flooring, eliminating desk wobble after installation | |
| Drawer operation | Full extension steel drawer slides allow 100% drawer access for retrieval of stored items, recessed black integrated drawer pulls for modern aesthetic | |
| Modular assembly capability | Desk breaks down into 5 core modular sections (worktop panels, central pedestal, credenza units, divider screens, leg assembly) for flat-pack shipping and on-site reconfiguration | |
| Cable Management Capacity | Reference capacity 6-10 power/data cables; tray load approx. 5-10 kg | |
| Reference Reassembly Count | Main joints should support 3-5 controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Number of shipping cartons | 3 flat-pack cartons | |
|---|---|---|
| Individual carton dimensions range | Carton 1 (worktops/credenza tops): 2850 x 650 x 80mm; Carton 2 (cabinet panels/dividers): 1850 x 600 x 150mm; Carton 3 (hardware/leg/frames): 1200 x 400 x 200mm | |
| Total shipping gross weight range | 150-180kg | |
| Total shipping volume (CBM) | 0.32-0.38 CBM | |
| On-site assembly time range (2 trained installers) | 60-90 minutes | |
| 20ft GP container loading quantity | 52-58 units | |
| 40ft HQ container loading quantity | 125-135 units | |
| Packaging protection details | 50mm EPS foam corner protection on all panel edges, 0.2mm plastic dust wrap over components, double-wall B-flute corrugated outer cartons, hardware sealed in labeled polybag with assembly manual | |
| Reference Package Count | 1 set / 1-2 cartons | |
| Reference Assembly Time | Approx. 15-40 minutes per set |
Recommended spaces / users / usage modes
| Open-plan office staff work areas | Designed for 2 adjacent employees in small team zones, with privacy dividers to reduce visual distraction and integrated storage to keep work surfaces uncluttered | |
|---|---|---|
| Startup and small business office spaces | All-in-one workstation + storage design reduces need for separate filing cabinets, maximizing usable floor space in compact office footprints | |
| Administrative and back-office work zones | Mixed drawer, cabinet and open storage supports filing, supply storage and CPU placement for administrative, HR or operations staff roles | |
| Hot-desking shared workspaces | Modular construction allows easy reconfiguration, durable melamine surface withstands frequent use by multiple rotating users | |
| School staff and administrative offices | Cork tack surfaces support pinning of notices, schedules and student documents, standard desk height aligns with ergonomic seated work for school personnel | |
| Recommended paired configuration | Pair with two mid-back ergonomic office chairs, under-desk monitor arms and CPU holders to fully utilize the work surface and knee clearance space | |
| Floor space requirement for installation | Minimum 3200 x 1850mm clear floor area |
European market access and chemical requirements
| EN 527-1:2011 | Office furniture - Work tables and desks: Safety and strength requirements, applicable to structural stability, edge safety and load performance for commercial office use | |
|---|---|---|
| EN 527-2:2016 | Office furniture - Work tables and desks: Mechanical safety requirements, applicable to knee clearance dimensions and adjustable component safety | |
| EN 13986:2004+A1:2015 | Wood-based panels for construction - Characteristics, evaluation of conformity and marking, applicable to formaldehyde emission and panel structural performance | |
| EN 15372:2008+A1:2016 | Furniture - Strength, durability and safety requirements for non-domestic storage furniture, applicable to cabinet and drawer performance in the workstation |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk Products: Standard for safety, durability, and structural performance of office work surfaces, applicable to static load, cycle, and stability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage Units: Standard for performance of office storage components including drawers, shelves and cabinet doors, applicable to the integrated pedestal and credenza storage |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to dimensional tolerance, edge quality, structural stability and finish performance of composite wood desk components | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels and finishing products, applicable to E1 grade panel requirements for indoor office use (≤0.124mg/m³ emission limit) | |
| GB/T 10357.1-2013 | Furniture mechanical performance test for tables: static load and durability testing, applicable to worktop load rating and structural stability verification | |
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable to substrate quality requirements for worktop and cabinet panels |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to dimensional tolerance, edge quality, structural stability and finish performance of composite wood desk components; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels and finishing products, applicable to E1 grade panel requirements for indoor office use (≤0.124mg/m³ emission limit); 3. GB/T 10357.1-2013: Furniture mechanical performance test for tables: static load and durability testing, applicable to worktop load rating and structural stability verification; 4. GB/T 4897.3-2003: Particleboard for furniture use, applicable to substrate quality requirements for worktop and cabinet panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
