Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 1780 x 680 x 800 mm | |
|---|---|---|
| Seat height from floor | 440 mm | |
| Single seat width | 520 mm | |
| Seat depth | 480 mm | |
| Backrest height above seat | 420 mm | |
| Armrest height above seat | 220 mm | |
| Leg spread width (front to back) | 650 mm | |
| Center support beam cross-section | 60 x 30 mm | |
| Armrest length | 320 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Net product weight | 27 kg | |
|---|---|---|
| Static load per seat | 150 kg | |
| Total static load capacity | 450 kg | |
| Recommended maximum occupancy | 3 people | |
| Seat/back impact durability | 100000 cycles | |
| Floor glide static friction coefficient | 0.6 | |
| Warranty period | 3 years | |
| Frame structural warranty period | 3 years | |
| Surface disinfectant resistance | 1000 wipe cycles | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
Core acceptance fields · Panels / hardware / frame / upholstery
| Seat and backrest shells | Integrally molded black polyurethane | |
|---|---|---|
| Central support crossbeam | 2mm thick cold-rolled steel with matte grey powder coating | |
| End leg assemblies | Die-cast aluminum alloy with polished chrome finish | |
| Armrests | Injection-molded black nylon/PP | |
| Floor glides | Non-marking grey rubber | |
| Seat mounting hardware | Zinc-plated steel bolts and brackets | |
| Seat-to-beam spacers | High-density rubber | |
| Beam end caps | Injection-molded black PP plastic | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Gas-lift Engineering Specification | Recommended Class 4; outer tube 50 mm; stroke 100 mm | |
| Tilt Mechanism Plate Thickness | 2.5 mm cold-rolled steel |
Adjustment / rotation / tilt / mobility / storage features
| Seating configuration | 3 fixed individual contoured seats | |
|---|---|---|
| Armrest provision | Two fixed outer armrests | |
| Floor mounting compatibility | Pre-drilled glide holes | |
| Cleaning design | Smooth seamless seat/back surfaces with no fabric seams | |
| Structural stability | Four-point splayed leg design | |
| Noise reduction | Rubber isolation spacers between seat units and steel beam | |
| Color option availability | 1 standard color (matte black seats/armrests, silver frame) | |
| Color configuration | 1 standard production color (matte black seats/armrests, polished silver frame) | |
| Recline Angle / Lock Reference | 125° with 3 suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Number of shipping cartons | 1 carton | |
|---|---|---|
| Shipping carton dimensions | 1850 x 720 x 220 mm | |
| Gross shipping weight | 32 kg | |
| Shipping volume (CBM) | 0.293 CBM | |
| Assembly time per unit | 25 minutes | |
| 20ft GP container loading quantity | 92 units | |
| 40ft HQ container loading quantity | 230 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm |
Recommended spaces / users / usage modes
| Hospital outpatient waiting areas | Easy to clean, durable construction supports constant high-volume daily use in clinical environments | |
|---|---|---|
| Transport terminal waiting zones (airport, bus, railway stations) | Fixed sturdy frame resists heavy use and provides consistent seating for transient passengers | |
| Public service office lobbies (banks, government centers) | Neutral professional appearance and comfortable short-term seating for visiting members of the public | |
| Clinic and medical facility reception areas | Non-porous seat surfaces support regular disinfection between users | |
| Break room and communal waiting spaces in commercial offices | Space-efficient multi-seat configuration for visitor and employee short-term seating | |
| Indoor event venue queuing areas | Stable fixed seating that can be anchored to the floor to prevent movement during high footfall events | |
| Public service office lobbies (banks, government service centers) | Neutral professional appearance and comfortable short-term seating for visiting members of the public, easy to maintain between visitor groups | |
| Commercial office visitor and break room waiting spaces | Space-efficient 3-seat configuration provides compact multi-user seating for short waiting periods, low maintenance requirements for facility teams |
European market access and chemical requirements
| EN 13761:2002 | Applicable European standard for public seating – test methods and requirements for strength and stability | |
|---|---|---|
| EN 1022:2018 | Applicable standard for domestic and contract seating stability, evaluating tipping resistance under normal use |
US and Canada office-furniture standards
Standards applicable to China-market projects
| GB/T 3326-2016 | Applicable standard for furniture size measurement for public seating products, used for dimensional acceptance inspection | |
|---|---|---|
| GB/T 35607-2017 | Applicable performance standard for public seating (waiting chairs), specifying strength, durability and stability test methods | |
| GB 18584-2001 | Applicable indoor decorating material standard, setting limits for harmful substance release from furniture components |
This product must meet the following technical requirements: 1. GB/T 3326-2016: Applicable standard for furniture size measurement for public seating products, used for dimensional acceptance inspection; 2. GB/T 35607-2017: Applicable performance standard for public seating (waiting chairs), specifying strength, durability and stability test methods; 3. GB 18584-2001: Applicable indoor decorating material standard, setting limits for harmful substance release from furniture components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
Export data is generated from the current published product record.
Directly download an English report in metric or imperial units.
Download all product information and parameter modules in English.
English title, specifications, materials, standards and purchasing fields.
Prepare customs description, material, usage, dimensions and declaration elements.

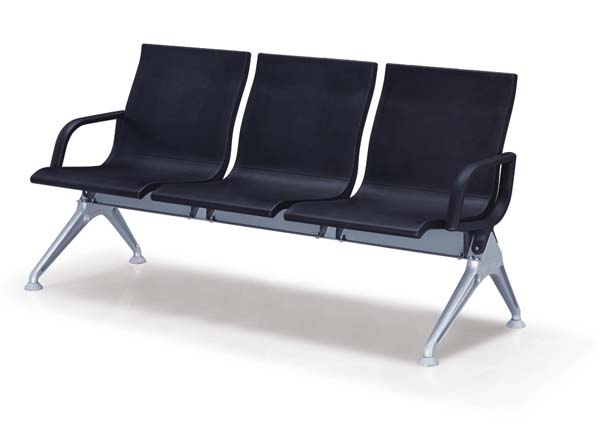

Open Export Tool3-Seat Polyurethane Beam Tandem Waiting Chair, Steel frame.
