| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback. | ||||
mm / 英寸自动双单位换算 · 工程采购基础规格
| overall dimensions | 1800 x 680 x 800 mm | |
|---|---|---|
| seat height | 430 mm | |
| seat depth per position | 480 mm | |
| seat width per position | 550 mm | |
| backrest height | 400 mm | |
| armrest height above seat | 200 mm | |
| leg spread width | 1650 mm | |
| leg base depth | 650 mm | |
| seat pan material thickness | 8 mm | |
| frame beam cross-section | 60 x 30 mm | |
| floor glide diameter | 50 mm | |
| main support beam cross-section | 60 x 30 mm | |
| under-seat clearance | 320 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| net product weight | 28 kg | |
|---|---|---|
| static load per seat position | 150 kg | |
| total static load capacity | 450 kg | |
| recommended occupancy | 3 adults | |
| seamless panel impact resistance | 10 J | |
| floor glide load rating per foot | 120 kg | |
| warranty period for structural frame | 5 years | |
| structural frame warranty period | 5 years | |
| PU panel surface abrasion resistance | 20000 cycles | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| seat and back panels | Integral self-skinning rigid polyurethane (PU) with matte orange finish | |
|---|---|---|
| main support beam | Die-cast aluminum alloy with powder-coated matte silver finish | |
| end armrests | Polished die-cast aluminum alloy | |
| side leg assemblies | Polished die-cast aluminum alloy curved leg frames | |
| floor contact glides | Non-marking thermoplastic rubber (TPR) adjustable feet | |
| connecting hardware | 304 stainless steel bolts and fasteners | |
| panel surface finish | Textured matte anti-scratch PU coating | |
| seat-back joint reinforcement | Embedded 2mm thick galvanized steel mounting plates | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Gas-lift Engineering Specification | Recommended Class 4; outer tube 50 mm; stroke 100 mm | |
| Tilt Mechanism Plate Thickness | 2.5 mm cold-rolled steel |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| fixed ergonomic contouring | Seat and back panels are pre-formed with 105 degree torso angle to support upright seated posture without adjustment | |
|---|---|---|
| permanent 3-position seat division | Integrated curved dividers between seats prevent cross-position sliding and define individual seating space | |
| fixed armrest support at ends | Two polished aluminum armrests mounted only at outermost seating positions to aid standing and sitting | |
| non-adjustable floor stabilization | Four adjustable TPR glides compensate for up to 15 mm of uneven floor height without requiring permanent floor anchoring | |
| easy-clean seamless surface | One-piece PU seat and back panels have no fabric gaps or seams to trap dirt, supporting wipe-down disinfection for high-traffic environments | |
| structural anti-tip design | Curved splayed leg layout extends support footprint outside the seat perimeter to prevent tipping when occupants lean on armrests | |
| corrosion-resistant construction | All exposed metal components use aluminum or stainless steel materials to resist rust and degradation from daily cleaning and high humidity use | |
| fixed end armrest support | Two polished aluminum armrests mounted only at outermost seating positions to aid standing and sitting transfers | |
| non-permanent floor stabilization | Four adjustable TPR glides compensate for up to 15 mm of uneven floor height without requiring drilling or permanent floor anchoring | |
| Recline Angle / Lock Reference | 125° with 3 suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| number of shipping cartons | 1 carton | |
|---|---|---|
| shipping carton dimensions | 1850 x 720 x 350 mm | |
| gross shipping weight | 32 kg | |
| shipping volume per unit | 0.47 CBM | |
| required assembly time | 30 minutes | |
| 20ft GP container load quantity | 56 units | |
| 40ft HQ container load quantity | 140 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm |
推荐空间 / 目标用户 / 使用方式
| airport terminal waiting areas | Durable construction and easy-clean surfaces support high-frequency daily use by large volumes of passengers with minimal maintenance | |
|---|---|---|
| hospital and clinic waiting zones | Disinfectant-resistant seamless PU surfaces allow frequent sanitization to meet healthcare facility hygiene requirements | |
| railway and bus station concourses | Rigid aluminum frame resists heavy impact and constant use in high-turnover public transit environments | |
| government service hall queuing areas | Fixed individual seating positions maintain orderly queue spacing while providing comfortable short-term waiting seating | |
| bank and office reception waiting areas | Neutral orange and silver finish complements commercial interior design while providing durable visitor seating | |
| school and public library common areas | Stable anti-tip design provides safe seating for high-traffic student and visitor use without risk of collapse | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
欧洲市场准入与化学品要求
| EN 16139 | 2013 Furniture - Strength, durability and stability - Non-domestic seating: Applicable for public non-domestic seating performance and stability acceptance criteria | |
|---|---|---|
| EN 13722 | 2004 Furniture - Assessment of surface resistance to cold liquids: Applicable for verification of PU panel resistance to cleaning agents and common public space spills | |
| EN 1022 | 2018 Furniture - Seating - Determination of stability: Applicable for anti-tip performance verification of free-standing public bench seating |
美国及加拿大办公家具标准
适用于中国市场项目的标准
| GB/T 3324-2017 General technical requirements for furniture | Applicable for general structural performance and appearance quality acceptance of metal-frame public seating | |
|---|---|---|
| GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture | Applicable for volatile organic compound emission testing of non-metal seating components | |
| GB/T 10357.3-2013 Test of mechanical properties of furniture - Strength and durability of chairs and stools | Applicable for static load and fatigue performance verification of seating structures |
本产品须满足以下技术参数要求： 1. GB/T 3324-2017 General technical requirements for furniture：Applicable for general structural performance and appearance quality acceptance of metal-frame public seating； 2. GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture：Applicable for volatile organic compound emission testing of non-metal seating components； 3. GB/T 10357.3-2013 Test of mechanical properties of furniture - Strength and durability of chairs and stools：Applicable for static load and fatigue performance verification of seating structures； 最终交付参数、检测报告和验收标准以双方采购合同为准。
以下文件均根据当前已发布商品参数实时生成。
直接下载英文参数报告，可选择公制或英制单位。
导出全部商品信息与参数模块，文件内容统一使用英文。
包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。
生成申报品名、材质、用途、尺寸及海关申报要素。

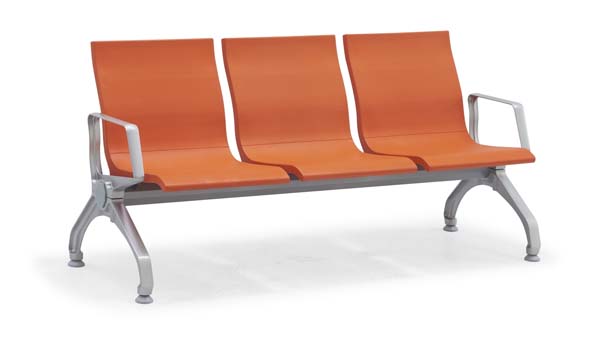

打开导出工具3-Seat Polyurethane Airport Waiting Bench with Aluminum Alloy Frame, Steel frame.
