mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall dimensions | 1800 x 700 x 800 mm | |
|---|---|---|
| Individual seat width | 530 mm | |
| Individual seat depth | 450 mm | |
| Seat height from floor | 430 mm | |
| Backrest height per seat | 400 mm | |
| Center-to-center seat divider gap | 25 mm | |
| Armrest height from seat surface | 200 mm | |
| Leg spread width (front pair) | 580 mm | |
| Floor glide diameter | 50 mm | |
| Frame crossbeam thickness | 50 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| Product net weight range | 28 kg | |
|---|---|---|
| Per-seat static load capacity | 150 kg | |
| Recommended maximum users | 3 people | |
| Seamless PU surface abrasion resistance reference | 50000 cycles | |
| Frame static load test reference | 8000 N | |
| Recommended maximum occupants | 3 people | |
| Seamless PU surface abrasion resistance | 50000 cycles | |
| Floor glide coefficient of friction | 0.6 | |
| Impact resistance (seat drop test) | 10000 cycles | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Seat panels | Integral-skin polyurethane, navy blue, 3mm thick outer wear layer | |
|---|---|---|
| Backrest panels | Integral-skin polyurethane, navy blue, same molded contour as seats | |
| Armrests | Die-cast aluminum alloy, silver powder-coated, open-loop ergonomic shape | |
| Support crossbeam | Cold-rolled steel rectangular tube, gray powder-coated, full length under seats | |
| End leg frames | Die-cast aluminum alloy, silver powder-coated, three-point splayed leg design per end | |
| Floor glides | Non-marking TPR rubber, fixed bolt-on, height-adjustable leveling pad | |
| Seat-to-frame fasteners | Stainless steel hex bolts, corrosion-resistant, fully recessed | |
| Surface finish | Matte anti-glare coating on metal components, stain-resistant self-skin PU surface | |
| Metal surface finish | Matte anti-glare powder coating, 60μm thickness, scratch-resistant | |
| PU surface finish | Stain-resistant matte self-skin surface, disinfectant-compatible | |
| Seat dividers | Integrally molded PU raised divider, 30mm height between adjacent seats | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Seating structure | Fixed three-position individual seat layout, with molded raised dividers between seats | |
|---|---|---|
| Cleaning access | Smooth non-porous PU surfaces and open under-seat frame, no enclosed gaps for debris accumulation | |
| Floor stability | Four-point floor contact with non-slip rubber glides, no casters for permanent placement | |
| Anti-tip design | Splayed outward leg geometry extending outside seat footprint, 580mm front leg spread | |
| Ergonomic support | Fixed contoured seat waterfall front edge and curved lumbar backrest shape | |
| Modular connection capability | End leg frames pre-drilled for ganging multiple bench units into continuous rows | |
| Corrosion resistance | Powder-coated aluminum and steel frame suitable for indoor climate-controlled public spaces | |
| Seating layout | Fixed three-position individual seat layout, with 30mm high molded raised dividers between seats | |
| Anti-tip performance | Splayed outward leg geometry extending 80mm outside seat footprint, 580mm front leg spread | |
| Modular gang connection | End leg frames pre-drilled for M8 bolted connection, allowing multiple bench units to be joined into continuous rows | |
| Leveling adjustment | Floor glides provide 10mm vertical adjustment range to compensate for uneven indoor flooring | |
| Recline Angle / Lock Reference | 125° with 3 suggested lock positions |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
推荐空间 / 目标用户 / 使用方式
| Hospital outpatient waiting areas | Ideal for triage, consultation and waiting zones, with easy-to-clean non-porous surfaces and durable construction for high daily use | |
|---|---|---|
| Transportation terminal waiting halls | Suitable for airport, railway station and bus terminal seating, with high load capacity and anti-tip frame for continuous public use | |
| Government service hall queuing areas | Appropriate for public service centers, bank lobbies and administrative office waiting zones, with clear individual seat dividers for orderly queuing | |
| Indoor commercial lobby waiting spaces | Suitable for office building lobbies, retail customer service areas and clinic reception zones, with neutral navy and silver finish matching professional decor | |
| Temporary event spectator seating | Usable for indoor exhibition, conference and event temporary seating, with ganging capability to form continuous seating rows | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
欧洲市场准入与化学品要求
| Non-domestic seating safety | EN 16139:2013 | |
|---|---|---|
| Furniture surface flame spread | EN 13501 | |
| Office and public seating stability | EN 1022:2019 |
美国及加拿大办公家具标准
| Multi-seat public seating test | ANSI/BIFMA X2020 | |
|---|---|---|
| Furniture VOC emissions | ANSI/BIFMA e2019 |
适用于中国市场项目的标准
| Public seating mechanical safety | GB/T 35607 | |
|---|---|---|
| Furniture surface heavy metal limits | GB 18584 | |
| Furniture impact resistance test | GB/T 4893.9 |
本产品须满足以下技术参数要求： 1. Public seating mechanical safety：GB/T 35607； 2. Furniture surface heavy metal limits：GB 18584； 3. Furniture impact resistance test：GB/T 4893.9； 最终交付参数、检测报告和验收标准以双方采购合同为准。
以下文件均根据当前已发布商品参数实时生成。
直接下载英文参数报告，可选择公制或英制单位。
导出全部商品信息与参数模块，文件内容统一使用英文。
包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。
生成申报品名、材质、用途、尺寸及海关申报要素。

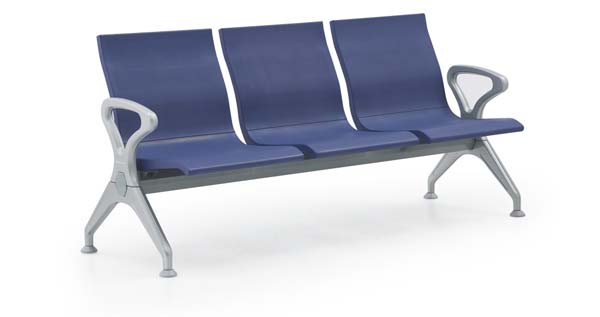

打开导出工具The three-seat aluminum frame public waiting chair, model WT-PU-3S-AL, is an unbranded public waiting bench designed for high-traffic shared spaces. Its streamlined form features a linear three-position fixed layout, with navy blue integral-skin polyurethane seats and backrests accented by silver powder-coated die-cast aluminum armrests and leg frames. Molded 30mm raised PU dividers sit between adjacent seats to clearly define individual occupancy zones, preventing overcrowding, while an open under-seat frame creates a clean, uncluttered visual profile. The unit features a matte anti-glare metal finish and smooth matte PU surfaces, with a neutral color palette that complements understated professional interior schemes. Constructed for heavy-duty public use, the bench combines a die-cast aluminum frame, cold-rolled steel rectangular support crossbeam with gray anti-rust powder coating, and integrated one-piece polyurethane seats and backrests with a thick outer wear layer. Aluminum armrests feature an open-loop ergonomic shape, while each leg terminates in a non-marking TPR rubber floor glide with bolt-on height adjustment to level the unit on uneven hard flooring. Stainless steel recessed hex bolts secure all seat-to-frame connections, and all metal components carry a scratch-resistant matte powder coat. The PU surfaces are non-porous, stain-resistant, and compatible with common public space disinfectants. Seating surfaces include a contoured waterfall front seat edge, curved lumbar support zone, and fixed ergonomic shape to support upright waiting posture. The splayed outward leg geometry extends beyond the seat footprint for anti-tip stability, with four-point non-slip floor contact for permanent static placement without casters. Pre-drilled end leg frames allow multiple units to be ganged together with bolted connections to form continuous custom-length seating rows, while the open under-seat structure and smooth PU surfaces enable quick, thorough cleaning without enclosed gaps that trap debris. This bench is well suited for hospital outpatient waiting zones, transportation terminal waiting halls, government service and bank queuing areas, commercial office and retail lobby waiting spaces, and temporary indoor event spectator seating. For procurement planning, note that the unit ships knock-down in separate cartons per set, with straightforward on-site assembly. Confirm all material specifications, connection hardware specs, and structural performance details with the supplier prior to final order placement, as some listed specifications are reference values aligned to industry public seating benchmarks rather than formal supplier test data. The fixed three-seat configuration is rated for a maximum of three simultaneous users, with abrasion-resistant seamless PU surfaces and high static load capacity tailored for consistent daily public use.
